ISO26262 compliance using
Application Lifecycle Management

GARANTIS provides NEW version of ISO 26262 Template for Polarion ALM

Predefined set:

  • Work Item types
  • Workflows
  • Link roles & custom fields for hazards, safety goals
  • Functional technical software and hardware safety requirements
  • LiveDocs
  • Document Templates
  • LiveReports
  • ASIL determination
  • ASIL decomposition
ISO26262 template Garantis Logo

Want to try new template for FREE?

Send your request to info@garantis-solutions.com

Why Polarion and ISO 26262?

Traceability between the information items

Allows you to see who made a change, what was changed, when it was changed and why it was changed.

One single tool

The process of safety analysis includes multiple steps. Polarion ALM covering multiple areas of product development.
*Functional Safety Analysis is added to ALM.

Great qualities

Polarion has great qualities to offer OEMs and suppliers in the automotive and transportation industries.

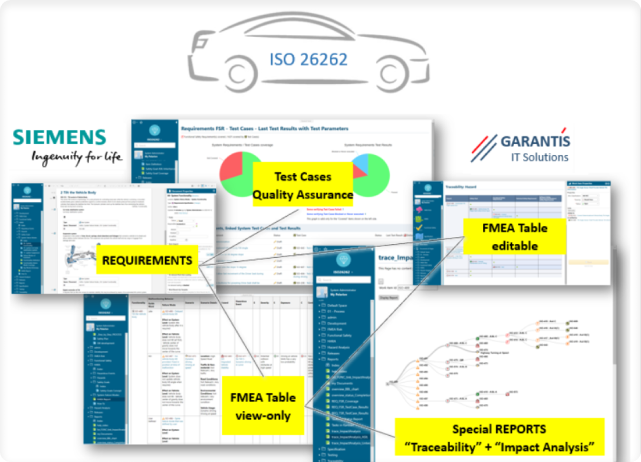

ISO26262 template Garantis Sheme

Compliance to ISO 26262 standard

The Polarion ISO 26262 Template supports the Hazard Analysis and Risk Assessment as well as the Functional Safety Concept of the Concept Phase of ISO 26262 Part 3. Based on the functional safety requirements specified during the Functional Safety Concept, the technical, hardware and software safety requirements can be derived for ISO 26262 Part 4,5,6. Test coverage for Quality Assurance is also covered.

Custom reports

Created to help you manage and analyze information.

ISO26262 reports Sheme ISO26262 reports Sheme

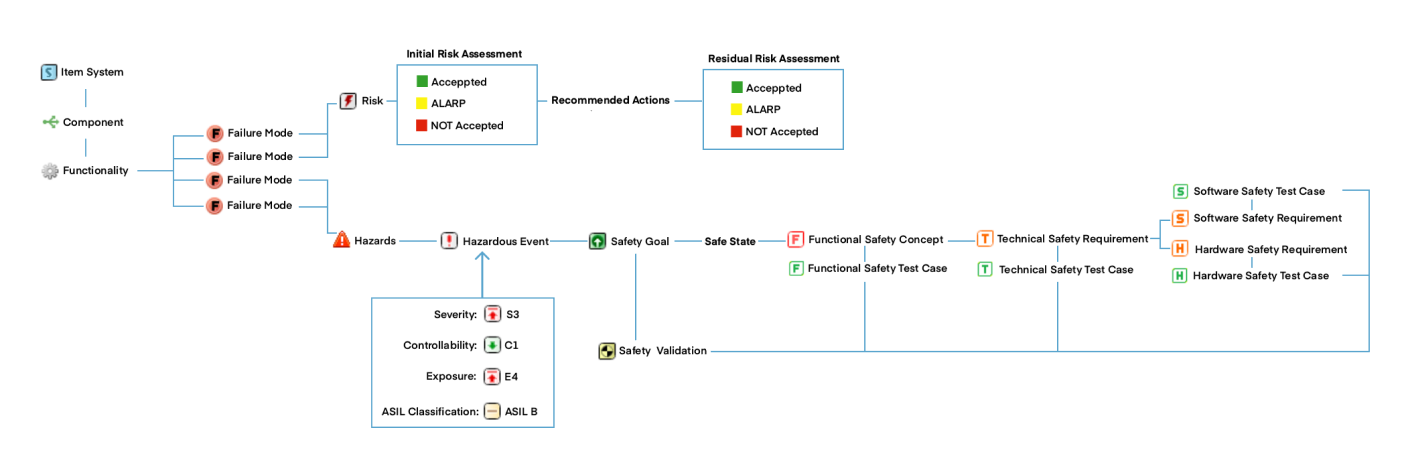

Data Model

ISO26262 data model scheme

Process

The process of safety analysis includes multiple steps. You need to identify hazards and risks, then you need to set the safety goals, prioritize them by ASIL level and then you need to define safety requirements, which can be hardware-related (hardware safety requirements ) , software-related (software safety requirements ) or technical safety requirements, and these requirements will help to reduce the risk of the hazard.

ISO26262 process scheme

ASIL Determination

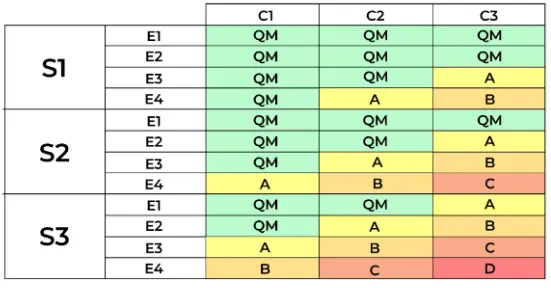

An ASIL has to be determined for each hazard using the parametet severity, probability of exposure and controllability in accordance with the table shown below.

ISO26262 ASIL Determinattion table

ASIL Decomposition

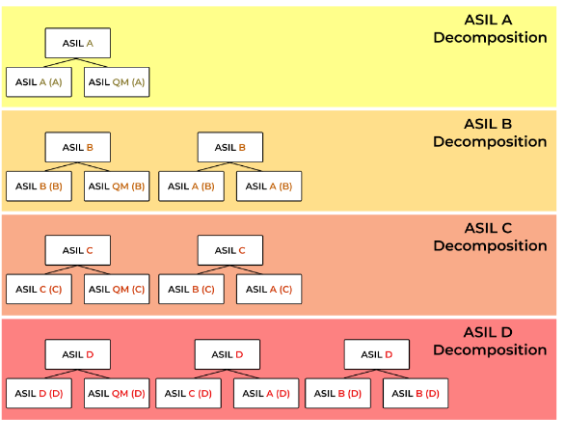

Table of valid combinations for ASIL Decomposition.

ISO26262 ASIL Decomposition table

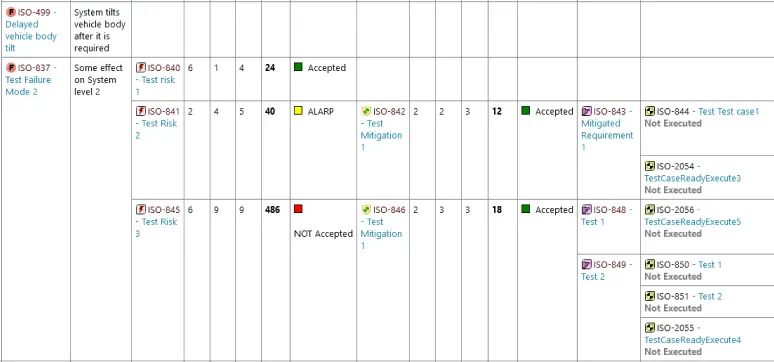

FMEA - Details of Implementation

FMEA is a technique that identifies and ranks potential problems and their effects.

FMEA proactively looks for errors early in the product lifecycle process to improve process and product.

The goal of FMEA is to reduce costs and problems that may lead to expensive recalls.

ISO26262 FMEA - Details of Implementation

Impact Analysis

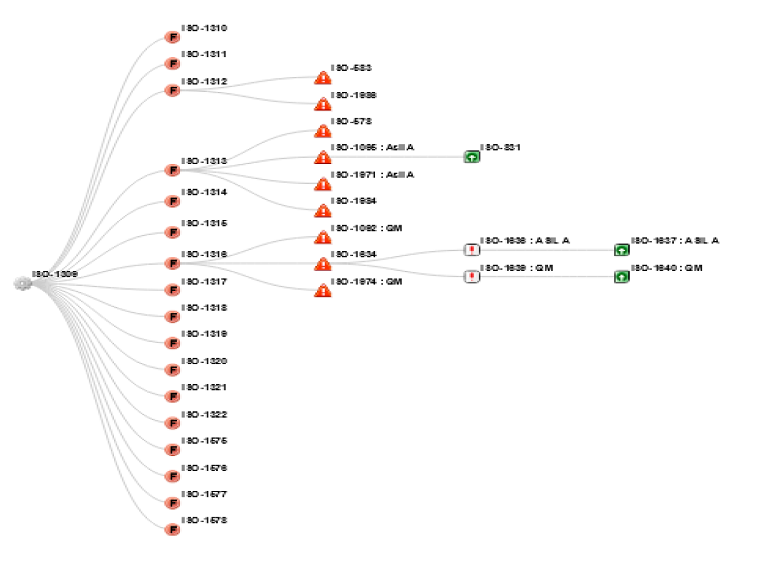

ISO26262 Impact analysis tree example

Intelligent Data Analysis

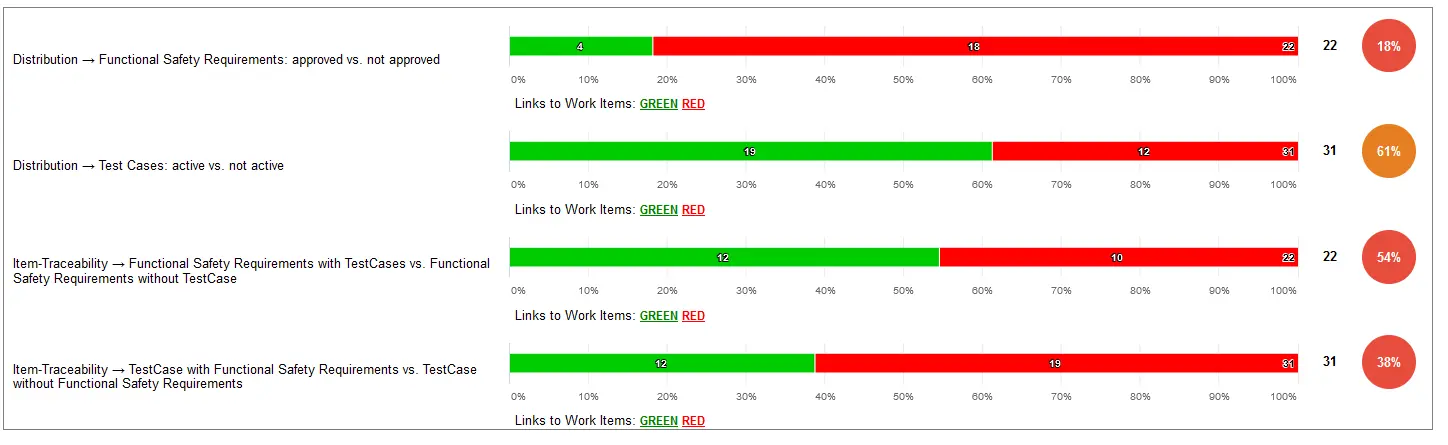

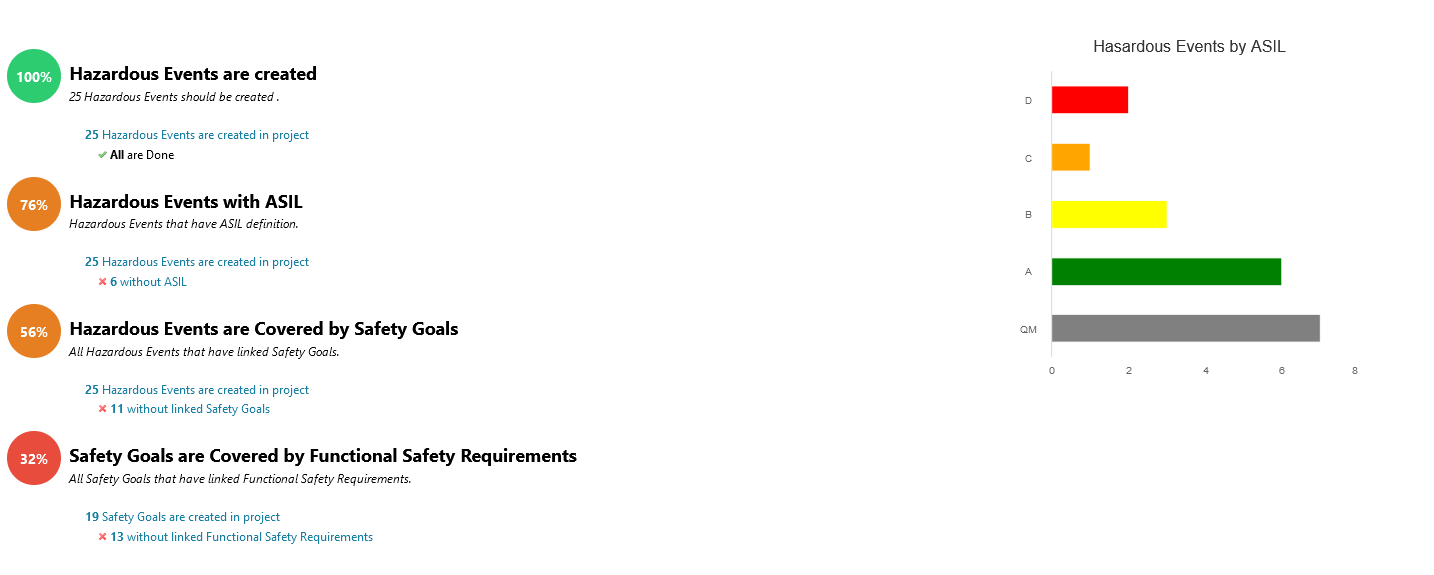

ISO26262 Intelligent Data Analysis example 1 ISO26262 Intelligent Data Analysis example 2

We can make your own Template depending to your needs

If you want to customize your work processes, you can call us and our experts will help you create your own template. You can either create from scratch or customize a ready-made template. In the first case it will take long time, because you need to discuss and agree between different departments. Practice shows that discussions take longer time, than the technical implemetation of the template.In the second case we offer existing data model, reports, permissions, processes - which are already tested and used by some companies.

ISO26262 custom example
ISO26262 custom example
ISO26262 custom example
ISO26262 custom example

Explore ISO26262 with Garantis

FREE

Try Evaluation Version

You can register to try Evaluation version for FREE on our server

Contact Us

per
REQUEST

Buy FULL Standard ISO26262 Template

You can buy FULL Standard ISO26262 Template

Contact Us

per
REQUEST

Custom ISO26262 Template

Garantis can adapt and customize ISO26262 Template to suit your needs

Contact Us

per
REQUEST

ISO26262 Training

Get specialized and advanced training about ISO26262 Template

Contact Us

FAQ's

Is Polarion ALM license type necessary to use this ISO26262 template or are reduced Polarion installations/licences sufficient (e.g. Polarion Requriements management only)?

You can use any license type, for example Requirements, Reviewer. You don't need to have explicitly ALM-type license.

Is it possible to generate a report at a specific baseline of items - e.g. when a previous version was released?

Yes. You can generate report for a specific baseline of a project, or for specific revision. Polarion has historic data saved in the database (SVN) and the report can always use this historic data.

I have a question regarding the HARA with your template. How can you ensure completeness in regard with combination between malfunctions and scenarios?

We use links between items malfunctions and scenarios to track the relationships between them. We plan to build a report which can calculate all possible combinations "malfunctions:scenarios" and to show how many combinations are already covered.

Polarion seems to be very modular. How would you estimate the possibility to adapt it to ISO 21343 (Road vehicles – Cybersecurity engineering) too?

This shall possible. We need to find specialist(s) in ISO 21343, examples of data and process. Then we can create Polarion ALM template for ISO 21343. Would be good to have some companies who will use this template and provide feedback, so that we can make improvements according to the practical needs.

Can I create my own ISOS26262 Template?

Yes, but it will take a lot of effort and time.
We offer existing data model, reports, permissions, processes - which are already tested and used by some companies.
If you try to create your own template, then you need to invent, implement and test all the processes, fields, reports. This will take long time, because you need to discuss and agree between different departments. Practice shows that discussions take longer time, than the technical implemetation of the template.
